high speed door
High speed door
SEPPES high speed door, Adopt German brand integrated integrated intelligent control system, servo high-precision drive unit, with patented safety protection technology, with safe, stable, fast and efficient professional performance. Innovative visual man-machine interface design, man-machine communication, real-time display of running status and fault codes. At the same time, the concept of industrial aesthetics is introduced into the structural process design, combined with automatic laser fine cutting and precision components to create high-performance products.High spee...
Description
SEPPES high speed door, Adopt German brand integrated integrated intelligent control system, servo high-precision drive unit, with patented safety protection technology, with safe, stable, fast and efficient professional performance. Innovative visual man-machine interface design, man-machine communication, real-time display of running status and fault codes. At the same time, the concept of industrial aesthetics is introduced into the structural process design, combined with automatic laser fine cutting and precision components to create high-performance products.
High speed door video

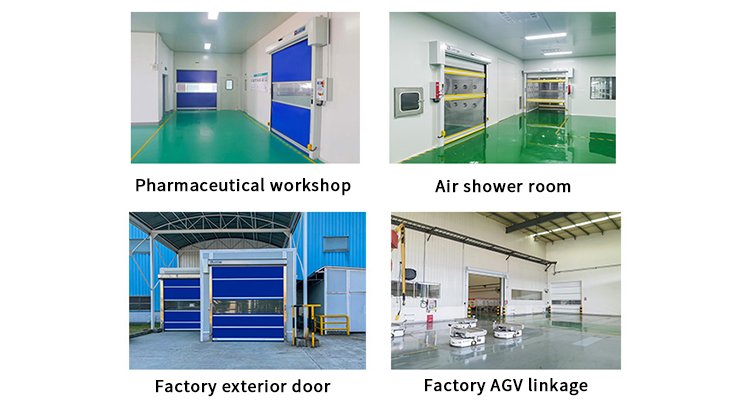

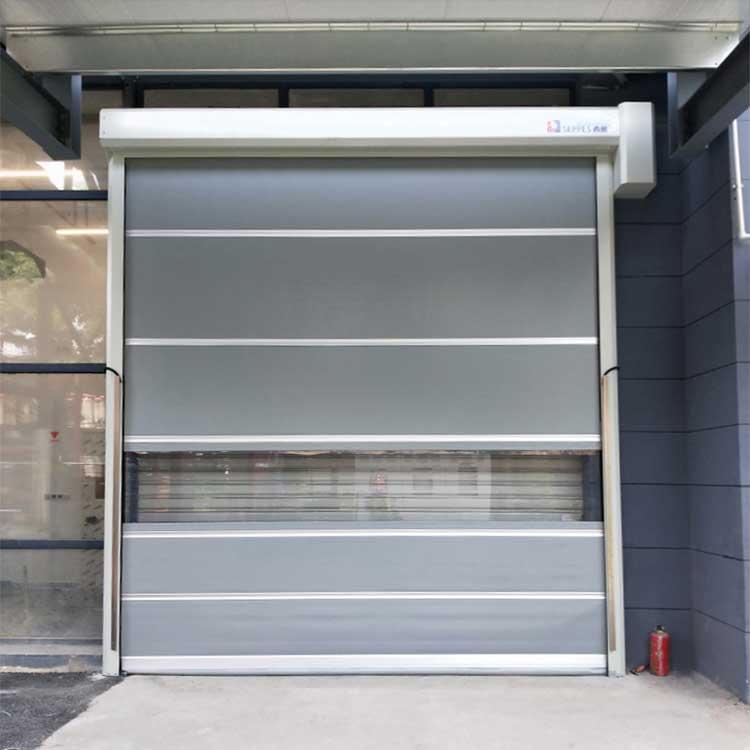

Installation site

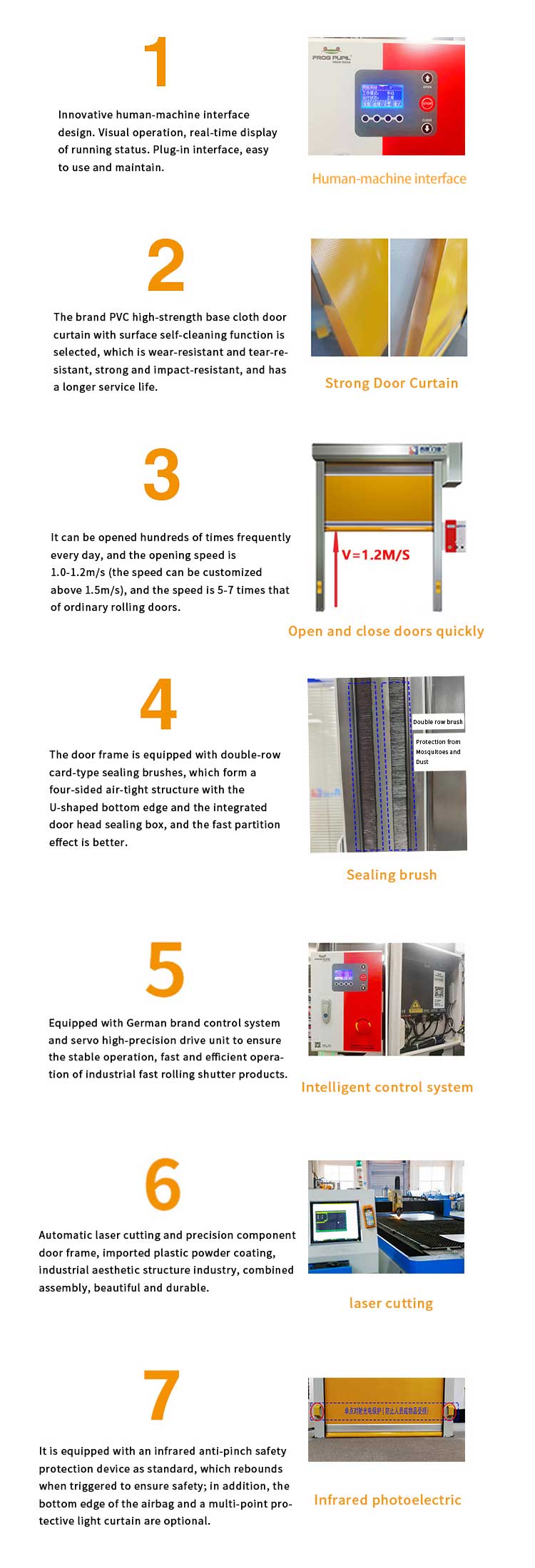

7 Advantages of SEPPES high speed door

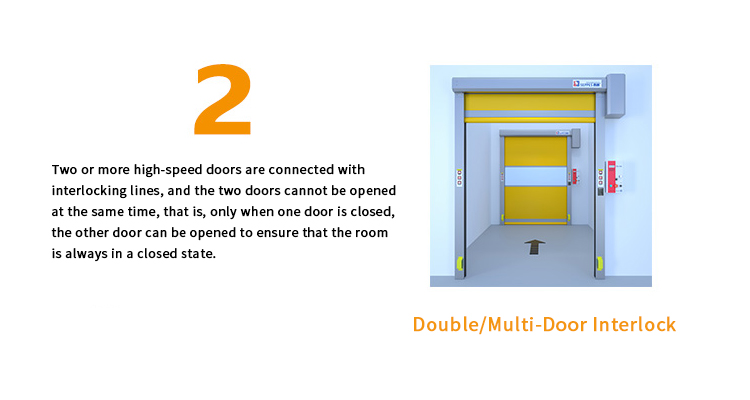

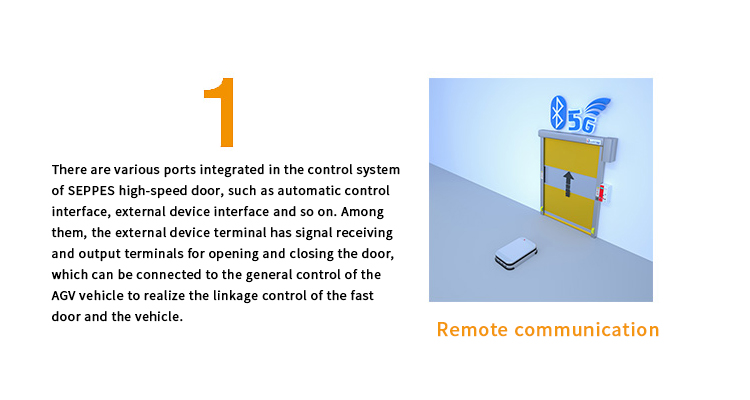

2 More functions

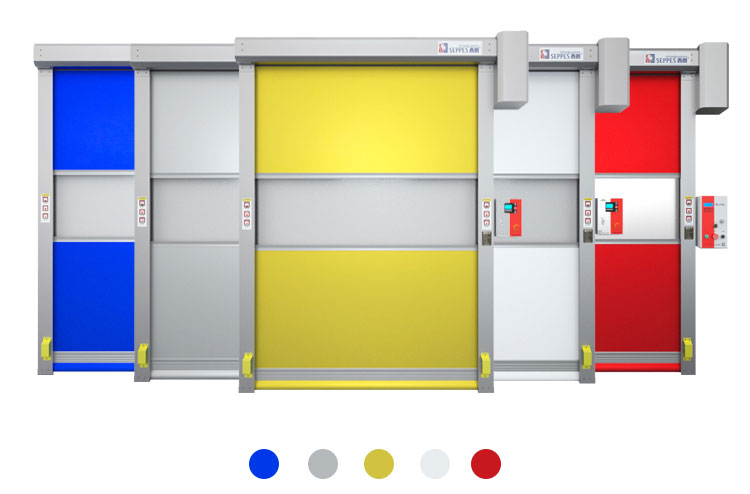

A variety of curtain colors can choose

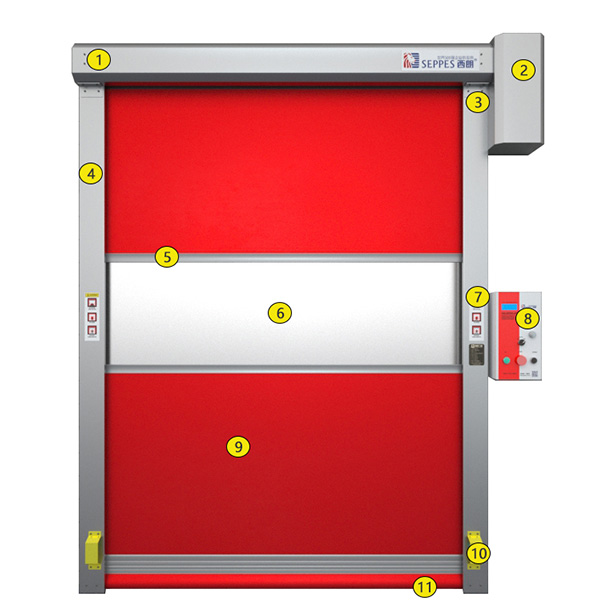

High speed door details
①The front box ②Motor ③Fixed angle iron ④Door track ⑤Aluminum wind-resistant ribs
⑥Transparent window ⑦Identification nameplate ⑧Control box ⑨PVC door curtain
⑩Infrared safety photoelectric ⑪U-shaped bottom edge

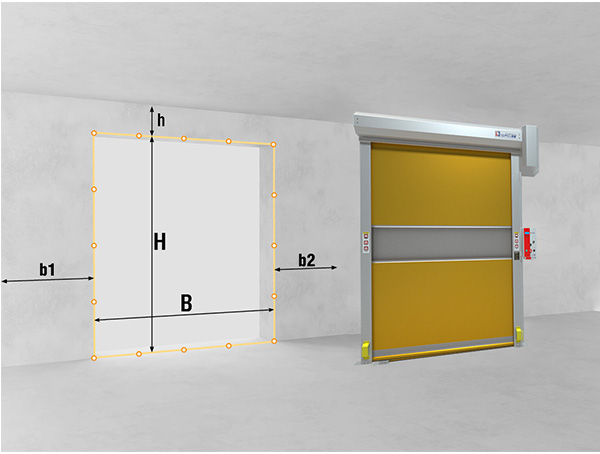

Installation requirements
All measurements are made indoors and each value must be measured at at least three points:
H--the height of the doorway (the distance from the ground to the top of the doorway)
B--the width of the door opening (the distance from the left edge of the door opening to the right edge)
h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 600mm
b1/b2--The lateral distance of at least 200mm (the distance from the corresponding edge of the door opening to the obstacle) is required to have 500mm reserved on the side of the motor: When measuring H and B, take the maximum value as the final dimension When measuring h b1 b2, take the smallest value as the final size

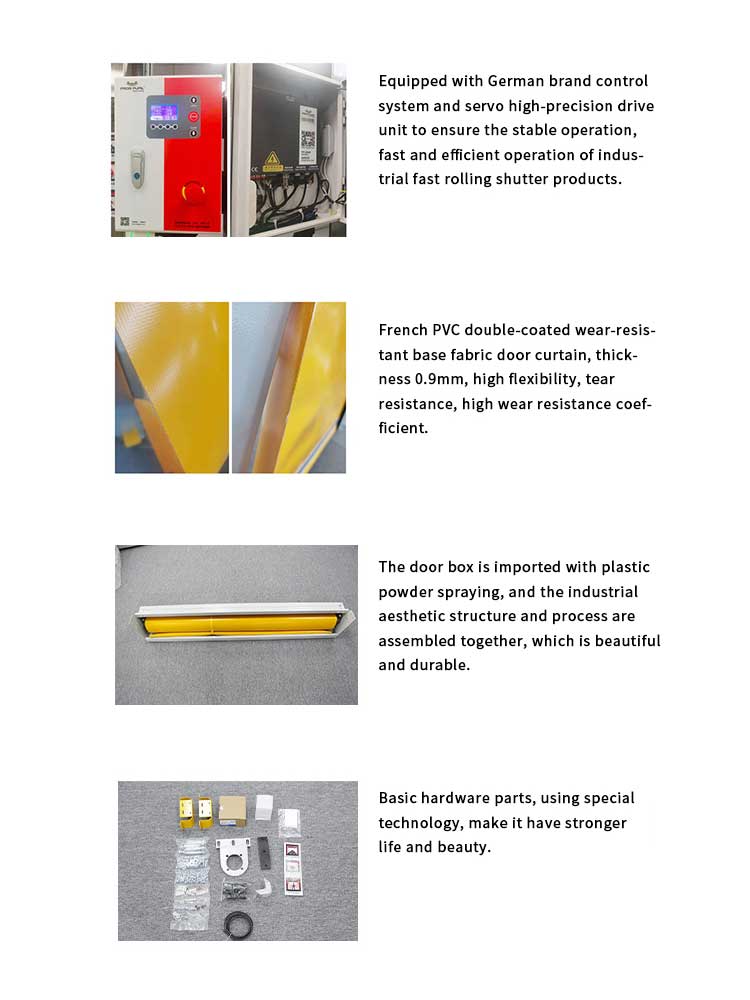

Basic configuration
Technical Parameters
| Maximum size | 5000*5000mm(W*H) |
| Wind pressure | 6-8 wind (refer to the size of the door) |
| Opening speed | 1.0-2.0 m/s (speed adjustable, refer to the size of the door) |
| Closing speed | 0.8 m/s (speed adjustable) |
| Operating temperature | -5 to 60°C |
| PVC curtain thickness | 0.8-1.2mm |
| Base fabric color | Blue, gray, white and other colors are optional |
| Frame material | cold-rolled steel plate with paint, 304 stainless steel, aluminum alloy |
| Voltage | 220V/50HZ |
| Interlock function | support |
| Linkage function | support (can provide door-open in-position, door-close in-position signal) |
| Induction mode | Radar, geomagnetic, photoelectric, rope, remote control |
| Safety protection | photoelectric (standard), safety bottom edge (optional) |

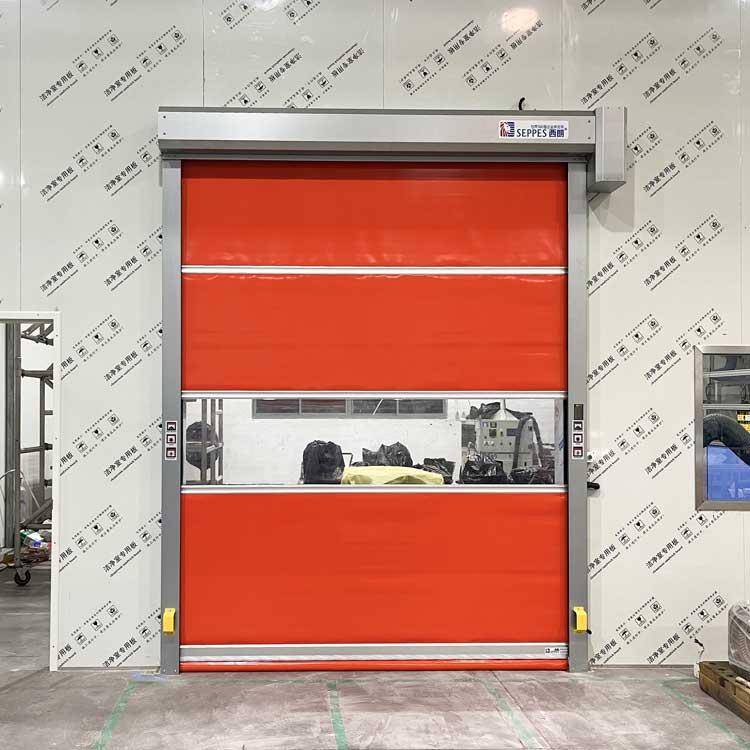

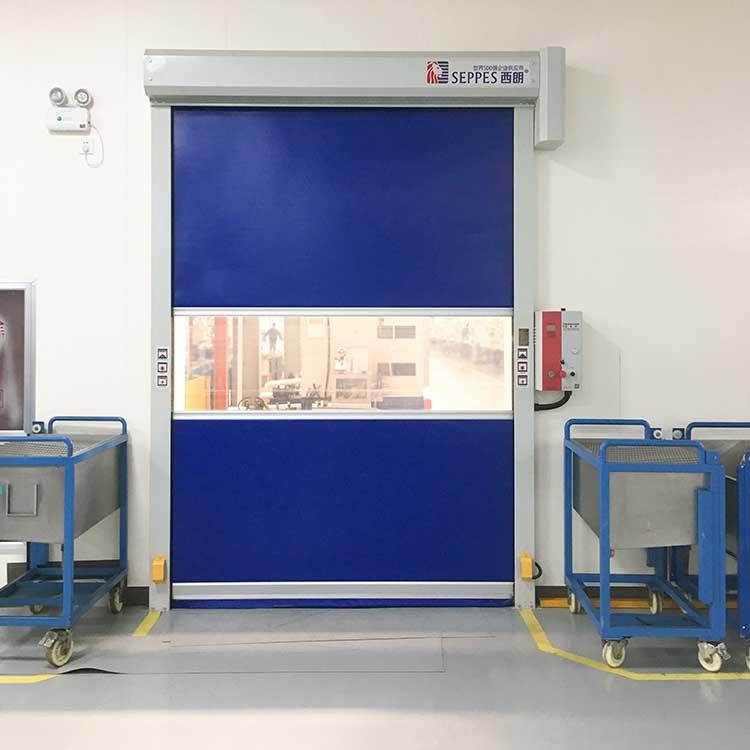

Project cases

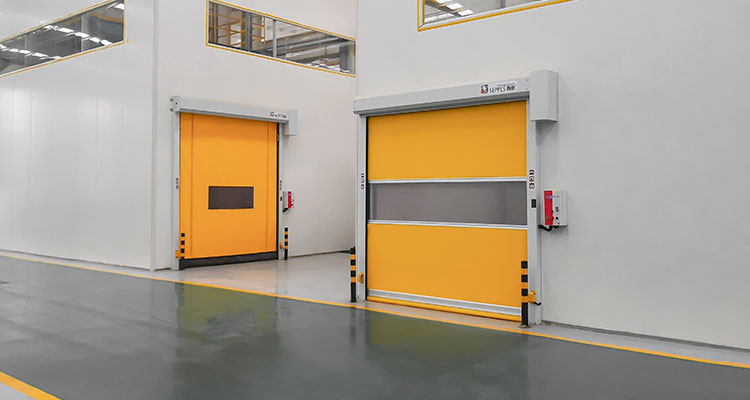

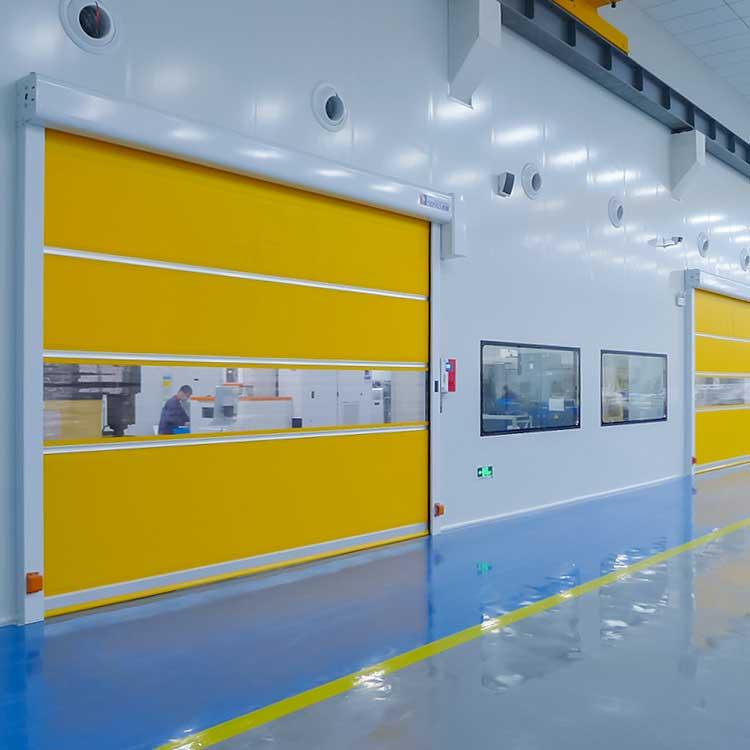

High speed door for clean workshop passages

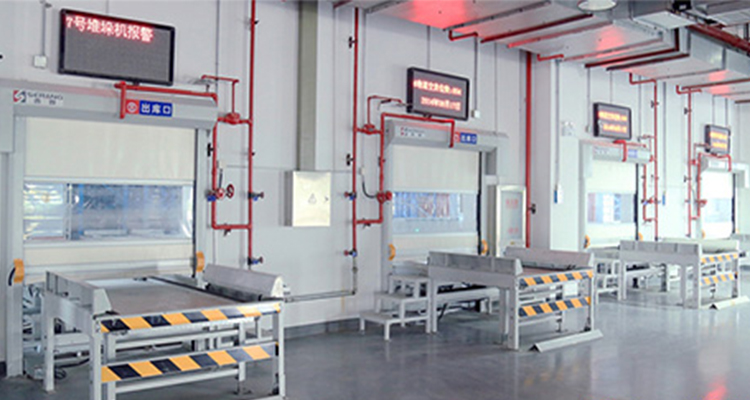

High speed door for automatic exits

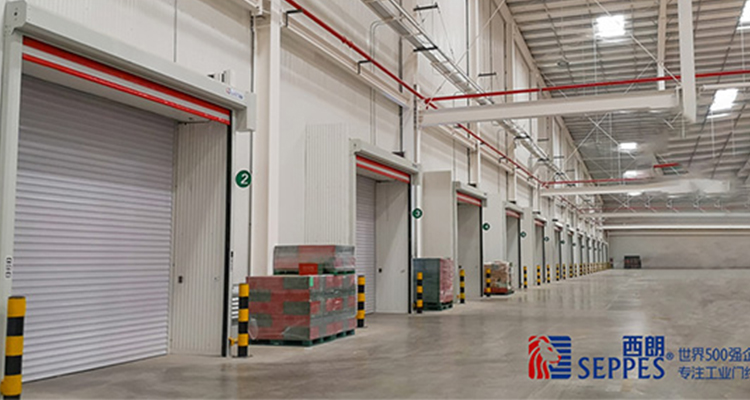

Two door combinations: High speed door + Aluminum alloy rolling door

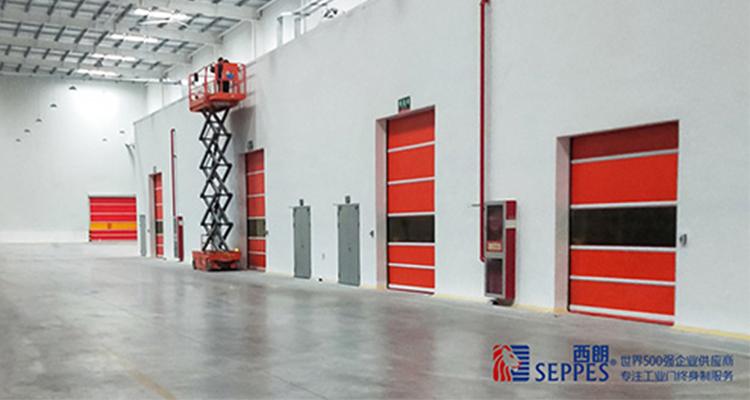

Large production bases use high speed doors

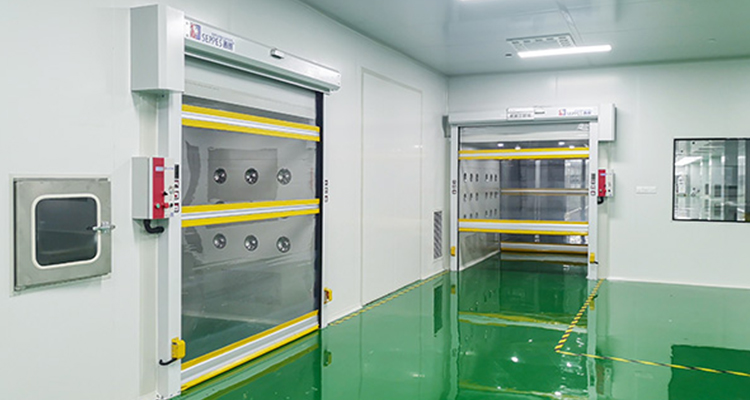

Air shower installed transparent high speed door
